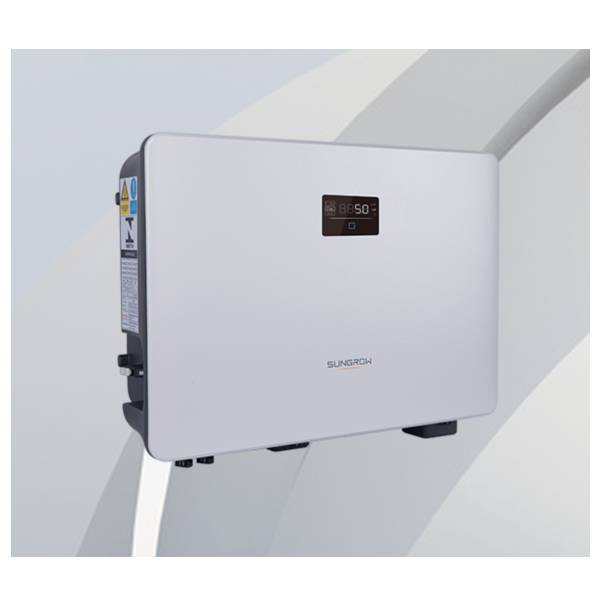

The Sungrow SH range of residential hybrid single-phase inverter offers a superb quality system with smart management real-time data, plug and play installation, ideal for both retrofit and new installations.
FLEXIBLE APPLICATION
- 80 V – 460 V wide battery voltage range
- Ideal for both retrofitting and new installations
- Built-in smart PID Zero function
ENERGY INDEPENDENCE
- Seamless transition to backup mode, for protection against power outages
- Fast Charging or discharging, enabling higher self-consumption results
- Built-in EMS with advanced customization
SMART MANAGEMENT
- Real time data (10 seconds refresh sample)
- 24/7 live online monitoring and with integrated display
- Online IV curve scan and diagnosis
USER FRIENDLY SETUP
- Plug and play installation
- iSolarCloud monitoring available on App and Web
- Lightweight and compact, optimized for heatdissipation
Input (DC)
- Recommended max. PV input power: 12000 Wp
- Max. PV input voltage: 600 V
- Min. PV input voltage / Startup input voltage: 40 V / 50 V
- Rated MPPT voltage: 235-480 V
- MPPT operating voltage range: 40 V – 560 V
- No. of independent MPP trackers: 2
- No. of PV strings per MPPT: 1 / 1
- Max. PV input current: 32 A ( 16 A / 16 A )
- Max. DC short-circuit current: 40 A ( 20 A / 20 A )
- Max. current for input connector: 20 A
Battery Data
- Battery type: Li-ion battery
- Battery voltage range: 80 V – 460 V
- Max. charge/ discharge current: 30 A / 30 A
- Max. charge / discharge power: 6600 W
Input / output (AC)
- Max. AC power from grid: 12000 VA
- Rated AC output power: 5000 W
- Max. AC output apparent power: 5000 VA
- Max. AC output current: 22.8 A
- Rated AC voltage: 220 V / 230 V / 240 V
- AC voltage range: 154 V – 276 V
- Rated grid frequency: 50 Hz / 60 Hz
- Grid frequency range: 45 Hz – 55 Hz / 55 Hz – 65 Hz
- Harmonic (THD): < 3 % ( of rated power )
- Power factor at rated power / Adjustable power factor: >0.99 at default value at rated power
- Feed-in phases / connection phases: 1 / 1
